AFO vs KAFO vs HKAFO and How Each Brace Supports Mobility

Trying to make sense of leg braces can feel confusing when you are already tired and in pain. Your care team has mentioned letters like AFO, KAFO, or HKAFO, and you are not sure which one applies to you or what each one would change about your day.

This guide will walk you through what each brace does, who tends to use it, what fitting looks like, and how the three devices compare side by side. You will also learn what these braces cost, how Medicare and most insurers handle them, and which professionals to lean on when you are deciding.

Nothing here is rushed, and neither are you.

What These Three Braces Have in Common

AFOs, KAFOs, and HKAFOs are all lower-limb orthoses that hold your joints in safe positions while you walk, but each one supports a different portion of the leg based on how much weakness or instability needs to be controlled.

Hearing three different acronyms in one appointment can feel like a lot, especially when each one looks different and each one was suggested for a reason that did not get fully explained.

Many people walk out of a first orthotics consult with more questions than they came in with. That is common, and it is one of the reasons your orthotist usually expects a follow-up conversation before any device is fabricated.

An orthosis is an external device that supports, aligns, or replaces lost function in a body part. Lower-limb orthoses cover different parts of the leg depending on where the weakness lives.

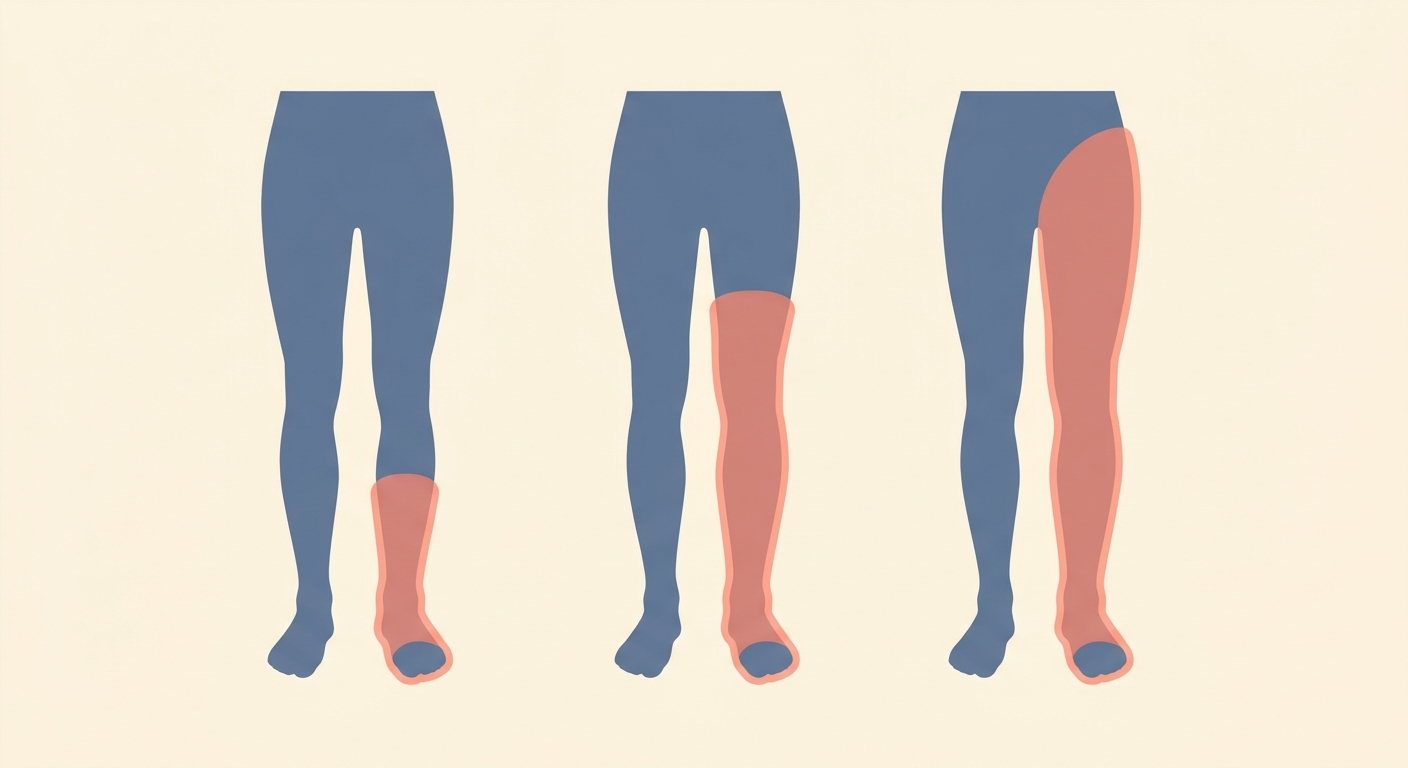

The naming pattern is literal. The letters list the joints the brace controls, working downward from the highest joint covered.

AFO covers the Ankle and Foot. KAFO adds the Knee on top of those. HKAFO adds the Hip on top of all three.

So choosing among them is mostly a question of how far up the leg the support has to reach to keep you safe and upright. Your orthotist and rehabilitation doctor decide that together, based on which muscle groups are working and which ones cannot hold the joint on their own.

If your care team is also weighing simpler shoe-insert options, the broader category of foot orthosis devices is a separate conversation. Those sit inside a shoe and control the foot only, while everything in this guide reaches at least up to the calf.

AFO (Ankle-Foot Orthosis)

An AFO is a leg brace that controls the ankle and foot, most often prescribed for foot drop, ankle instability, or post-stroke gait problems, and it is the lightest and most commonly used lower-limb orthosis.

Walking when your foot will not lift on its own can feel exhausting and unsafe. Catching a toe on the carpet, scuffing a curb, or twisting an ankle on uneven ground can quickly shake your confidence.

Many people in this situation are surprised by how much a properly fit brace changes their day. The goal isn't to push through the unsafe gait. It's to put a stable joint under you so the rest of your body can stop bracing for the next fall.

An ankle-foot orthosis is a brace that wraps the lower leg and foot, holding the ankle at about a 90-degree angle so the toes clear the floor with each step. Most AFOs are made of plastic or carbon fiber, fit inside a regular shoe, and stop just below the knee.

AFOs are the workhorse of lower-limb bracing. They are used for foot drop, which is the inability to lift the front of the foot while walking, and for ankle instability after a stroke, traumatic brain injury, or nerve injury.

For amputees, an AFO often appears on the sound side of the body, meaning the leg that was not amputated, when nerve damage or weakness from the same underlying condition affects that limb too. Many people with diabetes-related amputation, for example, also have peripheral neuropathy on the remaining side.

Common AFO Designs

Not every AFO looks the same, and the design choice matters for how the brace fits into your day.

• Solid (rigid) AFO – One molded piece with no moving parts. Best when the ankle needs full stability and motion is unsafe.
• Posterior leaf spring AFO – A flexible plastic shell trimmed thin behind the ankle bones. It lets the ankle bend a little and then springs back, common for mild foot drop.
• Articulated (hinged) AFO – Includes a mechanical ankle joint that allows controlled motion in one direction while blocking the other.
• Carbon fiber AFO – A lightweight, energy-return design. Often chosen by more active wearers because it stores and releases energy with each step.

Who Is on Your Team for an AFO

Your team for an AFO usually includes a rehabilitation doctor, a certified orthotist, and a physical therapist. The rehabilitation doctor, sometimes called a physiatrist, decides whether a brace is the right next step. The certified orthotist is the clinician who measures, fabricates, and adjusts the device.

Your physical therapist works with you on retraining your walking pattern with the brace in place. Many people find the first two weeks need the most adjustments, and that is part of the process, not a sign something is wrong.

KAFO (Knee-Ankle-Foot Orthosis)

A KAFO controls the knee in addition to the ankle and foot, and it is prescribed when the muscles that hold the knee straight are too weak to keep the leg from buckling during standing or walking.

A knee that gives out without warning is one of the hardest things to walk with. Even one buckling episode can shake your confidence for weeks.

If the muscles that straighten your knee, which are called the quadriceps and sit at the front of the thigh, do not have enough strength to hold the joint open during standing, a longer brace becomes the safer choice. That is the territory of the KAFO.

A knee-ankle-foot orthosis is a brace that extends from mid-thigh down to the foot, with a built-in knee joint and an ankle section. Most KAFOs use side bars made of metal or composite materials, connected to padded thigh and calf cuffs.

The knee joint inside a KAFO can be locked, free-moving, or stance-controlled. A locked knee stays straight all the time and is the most stable but the most tiring to walk in. A stance control knee is locked when your foot is on the ground and unlocks when you swing the leg through, which feels closer to a natural step.

Conditions That Often Lead to a KAFO

KAFOs are most often used for post-polio syndrome, which is late-onset weakness in people who had polio decades earlier. They are also common for partial spinal cord injuries that affect the legs, muscular dystrophy in its mid-stages, and severe quadriceps weakness after a stroke.

For amputees, a KAFO sometimes appears on the contralateral side, meaning the side opposite the amputation, when underlying nerve or muscle weakness on that side is severe enough to threaten standing balance.

Some readers are also weighing a KAFO alongside other options for unstable knees. That broader landscape, including knee sleeves and post-surgical hinged braces, is covered in the site's overview of when different types of leg braces are used.

What KAFO Use Asks of You Day to Day

A KAFO is heavier than an AFO and asks more of your hip muscles and your stamina. Many people use a cane, walker, or crutches with their KAFO, especially in the early months.

Your prosthetist or orthotist will explain how to don and doff the brace, which means putting it on and taking it off, and how to inspect your skin after each session of wear. Pressure points, redness, or rubbing should not be ignored. These are signs to contact your orthotist.

HKAFO (Hip-Knee-Ankle-Foot Orthosis)

An HKAFO adds a hip joint and pelvic band to a KAFO, and it is reserved for people whose hip muscles cannot stabilize the pelvis during standing or whose paralysis reaches above the hip.

Being told you need bracing that reaches all the way up to your pelvis can feel heavy, especially if you were hoping a smaller device would do the job. It is okay to take a beat with that news before deciding anything.

HKAFOs are not common. They are prescribed when the hip joint itself cannot be controlled by the body's own muscles, and they exist because for some people no shorter brace can keep the pelvis level during standing.

A hip-knee-ankle-foot orthosis is the most comprehensive lower-limb brace. It extends from a pelvic band around the waist down to the foot, with mechanical joints at the hip, knee, and ankle.

The hip joint mechanism limits unwanted rotation and abduction, which is the leg swinging outward away from the body. Without it, the trunk would lurch sideways with each step.

When an HKAFO Is the Right Tool

HKAFOs are typically prescribed for higher-level spinal cord injuries, advanced cases of spina bifida, severe cerebral palsy with hip instability, and paralysis of the hip abductor muscles. Most adults who use an HKAFO are wheelchair users for distance and rely on the brace for exercise walking, standing, and short transfers rather than full-time community ambulation.

Children with spina bifida or muscular dystrophy may use HKAFOs during growth years to maintain hip alignment and bone density, even if walking outside therapy sessions stays limited.

The Honest Trade-Off

Walking in an HKAFO is energy-consuming. Studies of HKAFO gait routinely find oxygen costs two to four times higher than walking without a brace, which is why many adults use the device for therapy and standing programs rather than for getting around all day.

That trade-off is real, and it is not a personal failure. The brace is doing the work that several muscle groups would otherwise share.

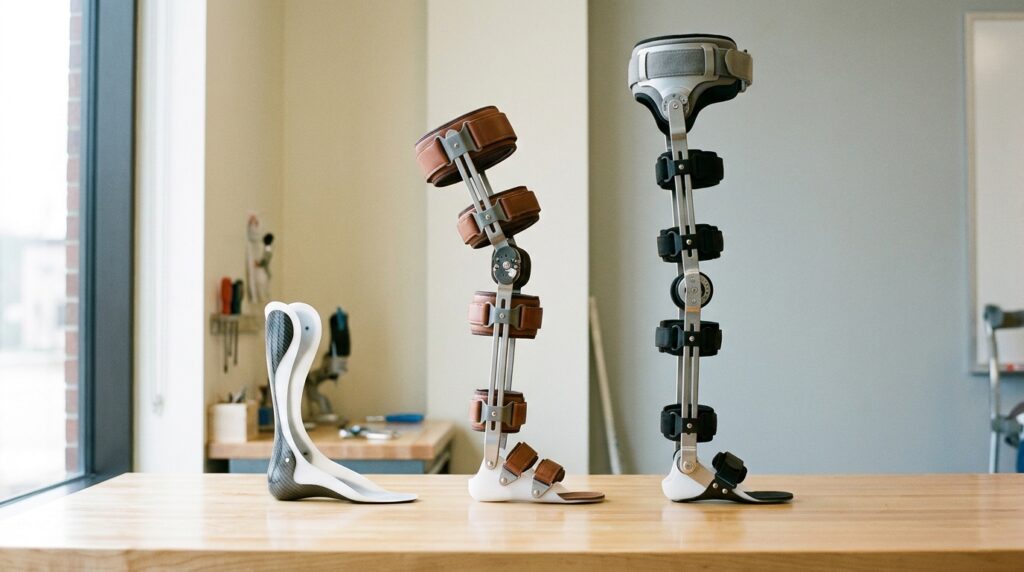

AFO vs KAFO vs HKAFO Side by Side

The three braces differ in the joints they cross, the conditions they treat, their weight and complexity, and the cost range your care team is working within.

Below is a simple breakdown of how the three braces compare. The categories most likely to matter in your decision are joint coverage, common indications, weight, and cost.

The HCPCS L-code is the billing code that Medicare and most private insurers use to classify each brace. Your orthotist's office files the claim using the code that matches your specific device.

How You and Your Care Team Decide

Choosing among AFO, KAFO, and HKAFO is a clinical decision based on which joints fail without support, but you have a voice in trade-offs around weight, cosmetic visibility, and lifestyle.

It is normal to feel out of your depth in this conversation. You are being asked to weigh options that use unfamiliar vocabulary and that you have never seen on your own body.

Many people benefit from writing down their daily routine before the consult. Your orthotist needs to know how far you walk on a typical day, what surfaces you cover, and what activities you are trying to get back to.

The clinical decision rests on three questions. First, which joints lose their alignment when you stand or walk.

Second, how much muscle strength is available to control each joint. Third, whether a lighter brace would meet the safety requirement.

The rule of thumb is to use the shortest brace that keeps you safe. A KAFO is not prescribed when an AFO will do the job, and an HKAFO is not prescribed when a KAFO can hold the hip in place with a pelvic band added or with assistive device support.

Questions to Ask at Your Consult

• Which joints are unstable enough to need bracing right now, and which ones might recover with therapy alone?

• Is a prefabricated brace an option, or is custom fabrication medically necessary in your case?

• What are the realistic expectations for how walking will look in this brace after three to six months of use?

• How heavy is the device being recommended, and will you need a cane, walker, or crutches with it?

• What is the L-code your orthotist plans to bill, and what does your insurance cover for that code?

• How often will you need follow-up adjustments in the first year?


What Fitting Looks Like

Fitting any of these braces follows a similar arc, with longer timelines as the brace gets more complex, and your role is to give honest feedback about where the device feels wrong.

A first fitting can feel intimidating, especially if you are not sure what you are supposed to notice or report. Most orthotists expect you to be quiet at first and will ask specific questions to draw out the details that matter.

The general fitting process moves through these steps for any of the three brace types.

1. Initial evaluation – Your rehabilitation doctor and orthotist review your medical history, watch you walk, and test the strength and motion of each joint.
2. Casting or scanning – Your leg is wrapped in plaster, or scanned with a digital scanner, to capture the exact shape the brace has to fit.
3. Fabrication – The orthotist builds the brace from your mold or scan. This usually takes two to four weeks for an AFO, three to six weeks for a KAFO, and four to eight weeks for an HKAFO.
4. Fitting appointment – You try on the brace and walk a few steps. The orthotist heats and reshapes the plastic, trims edges, and adjusts straps.
5. Wear schedule – You build up wearing time gradually, usually starting at two hours per day and increasing over a week or two.
6. Follow-up adjustments – Most people return at one week, one month, and three months for refinements. Loose or tight spots are expected. They do not mean failure. They often mean progress.

Your physical therapist often coordinates closely with your orthotist during this phase. If something feels off when you walk in the new device, both clinicians want to know.

Cost, Insurance, and Replacement Timelines

Most AFOs, KAFOs, and HKAFOs are covered by Medicare Part B at 80% after the annual deductible, with private insurers usually following similar rules, and the brace typically lasts three to five years before replacement.

The cost side of bracing can feel like one more burden you did not ask for. You did not choose to need this.

Many people are surprised by how much of the brace insurance actually covers when documentation is in order. The pieces below are the ones that decide your out-of-pocket cost.

What Medicare Pays

Medicare Part B covers custom-fabricated AFOs, KAFOs, and HKAFOs as durable medical equipment when they are medically necessary for an ambulatory person, which means someone who can walk at least short distances. After you meet the Part B deductible, Medicare usually pays 80% of the approved amount, and you are responsible for the remaining 20%.

Prefabricated AFOs are also covered when they meet criteria, and they are billed under different L-codes than custom devices. The choice between prefabricated and custom fabrication is documented in your medical record by the prescribing physician and the orthotist.

What Private Insurance Usually Pays

Most private health insurance follows a similar pattern, often with the same HCPCS L-codes and a coverage percentage that depends on your specific plan. Your deductible, in-network status of the orthotist's office, and prior authorization rules are the variables that drive the final bill.

If you are weighing how to cover the remaining percentage, the broader landscape of financial assistance for amputees includes nonprofit grants and state-funded programs that some orthotic users also qualify for.

How Long a Brace Lasts

Replacement timelines depend on the device, your activity level, and changes in your body. Medicare considers most AFOs and KAFOs eligible for replacement after three to five years, sooner if a documented medical change requires it.

Children outgrow braces faster, sometimes every six to twelve months during growth spurts. Adults whose body weight, swelling, or muscle bulk changes significantly should expect adjustments or refits before the full timeline.

Honest Limitations and What to Watch For

Bracing reduces injury risk and supports mobility, but it does not restore lost muscle function, and a poorly fit brace can cause skin breakdown that needs medical attention.

It is important to be honest about what these braces can and cannot do.

An AFO, KAFO, or HKAFO does not return your muscle strength. It externally supports joints so you can use the strength you do have safely.

Walking in any of these braces takes more energy than walking without one. Fatigue earlier in the day is normal, especially in the first months.

If you have reduced sensation in the affected limb, which is common with peripheral neuropathy or spinal cord injury, daily skin checks are essential. A small irritation can become a wound quickly when you cannot feel it.

Your care team would not recommend pushing through pain that the brace is causing. Pain is information, not a failure of grit.

Living With Your Brace

A few simple daily habits, including skin checks, gentle cleaning, and consistent shoe choice, keep your brace working well and reduce the risk of problems between appointments.

Living with any of these braces is mostly about small, consistent habits rather than dramatic changes. Many people find a short morning and evening routine becomes second nature within a few weeks.

• Skin check – Look at every spot where the brace touches your leg before putting it on and again after taking it off.
• Sock layer – Wear a clean cotton or specialty orthotic sock under the brace to absorb sweat and reduce friction.
• Shoe consistency – Use the same shoe, or a shoe with the same heel height, you were fit in. Even a half-inch change in heel height can change how the brace loads your joints.
• Cleaning – Wipe the plastic with a damp cloth and mild soap. Avoid alcohol or harsh cleaners that can dry out plastic.
• Storage – Keep the brace out of hot cars and direct sunlight. Heat softens the plastic and can change the shape.

If your prescribing physician requires it, your insurance may also approve specialty orthotic socks, brace liners, or shoe modifications. Ask the front desk or billing office if they offer any in-house help with these accessories.

Many people benefit from working with a physical therapist who specializes in lower-limb bracing in the first months, especially when the brace is a KAFO or HKAFO. The same is true for amputees adjusting to a sound-side brace. Some of those visits can be coordinated alongside other rehab work covered in the broader types of custom orthotics conversation, since insurance often groups them under similar visit limits.

Your Path Forward

Sorting through brace options is one piece of a longer recovery, and you do not need to have it all figured out by your next appointment. The shortest brace that keeps you safe is the one your team is aiming for, and that target moves as your strength and balance change.

Go at your own pace. There is no deadline for getting comfortable in a new device.

Start small. Ask the question. Trust the process.

Frequently Asked Questions

Common reader questions about how these braces compare, who fits them, and what daily life looks like after fitting.

Can a Person Move From a KAFO Down to an AFO Over Time

Yes, when underlying strength returns or stabilizes. Many people with partial spinal cord injury or post-stroke weakness start in a KAFO during the most fragile period and transition to an AFO once their quadriceps can hold the knee on their own.

This transition is decided by your rehabilitation doctor and physical therapist after repeated strength testing.

Is an HKAFO the Same as an Exoskeleton

No. An HKAFO is a passive brace that uses your own muscle effort and gravity. An exoskeleton has motors that drive the joints.

Exoskeletons are a separate category and are covered by insurance under very different rules.

Can You Drive With Any of These Braces

Many people drive comfortably with an AFO on their right leg, especially with hand control adaptations or after a driver rehabilitation evaluation. Driving with a KAFO or HKAFO usually requires adapted controls and a formal driver evaluation.

Your state's department of motor vehicles may also require documentation from your care team.

How Many Hours a Day Are You Supposed to Wear It

Your prescribing physician and orthotist set the schedule. Most people wear their AFO during all walking activity, build KAFO time up gradually to match their daily routine, and use HKAFOs for prescribed walking or standing sessions rather than full-day wear.

Will Insurance Pay for a Brace If You Already Use a Prosthesis

Yes, when the brace is for a different limb than the prosthesis and meets medical necessity criteria for that limb. Many amputees qualify for an AFO on the sound side under the same Medicare Part B durable medical equipment benefit that covers their prosthesis.

Talk to your care team about the documentation your orthotist's office will need to file the claim.
